- Smart Control + IoT Monitoring： Concrete Batching Plant with 30% Faster Startup & 40% Lower Failures
- Full-Scenario Customization & Precise Feeding： Boost Batch Plant Utilization by 35% & Production Continuity by 20%
- Predictive Maintenance： Extend Concrete Plant Life by 15% & Minimizing Unplanned Downtime
Concrete batching plant is the core of modern construction, integrating accurate material measurement and efficient mixing to produce high-quality concrete for safe, on-schedule projects. A high-quality concrete batch mixing plant solves all production troubles, while a suitable one can boosts your profits by 200%—and AIMIX is dedicated to delivering such optimal solutions for global clients. With over 2,000 sets of batching plants delivered to 50+ countries, we tailor solutions to diverse scenarios. Below, we’ll break down our product types to help you find the right fit.
Exploring Different Types of Batching Plants: Features & Ideal Uses
Choosing the right batching concrete plant equipment depends on your project’s scale, timeline, location, and concrete quality demands. Below is a detailed breakdown of the most common types, designed to help you find the perfect match for your construction needs.
Stationary Concrete Plants
Stationary concrete batch mixing plants are high-capacity, stable options for long-term, large-scale projects. Its production capacity ranges from 25 m³/h to 240 m³/h. Key details:
- Feeding Methods: Two main types available, adaptable to different material handling needs:

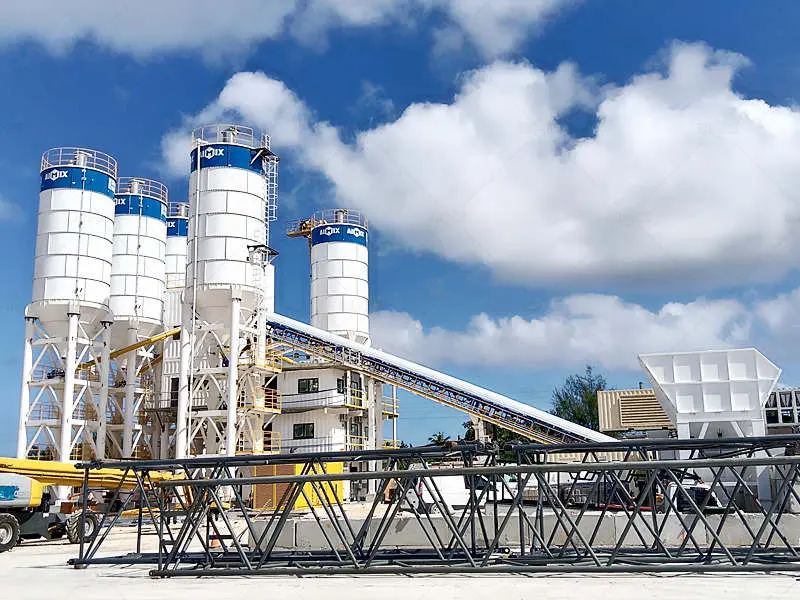

- Belt type concrete batching plant(models: AJ-60, AJ-90, AJ-120, AJ-180)
- Hopper batching plant (models: AJ-25, AJ-35, AJ-50, AJ-75)
- Core features: Customizable component configurations (large-capacity cement silos, multi-hopper aggregate bins, high-efficiency twin-shaft batching plant mixer), precise batching plant equipment for consistent concrete quality, seamless integration with IoT remote-control systems for 24/7 continuous operation; its stable high-volume output can attract local clients in need of concrete, helping you expand the profit pool by tapping into more local demand
- Ideal uses: Commercial concrete production bases, large infrastructure projects (highways, bridges, airports), mining projects needing long-term, high-volume concrete supply

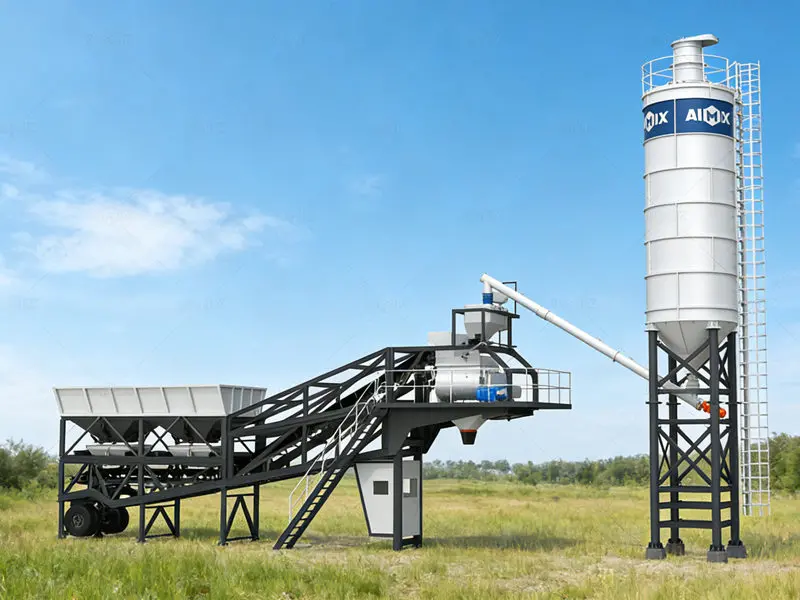

Mobile Concrete Plants
Mobile concrete batching mixing plants are defined by flexibility and rapid deployment. Key details:
- Production Capacity: 60 m³/h to 120 m³/h, suitable for medium-volume concrete needs.
- Main Models:
- AJY series (Allows direct discharge into a concrete mixer truck, production capacity of concrete batching plant can reach up to 100 m³/h)
- AJSY mini series (Quickly installed and relocated, maximum flexibility, suitable for small-batch and high-frequency project)

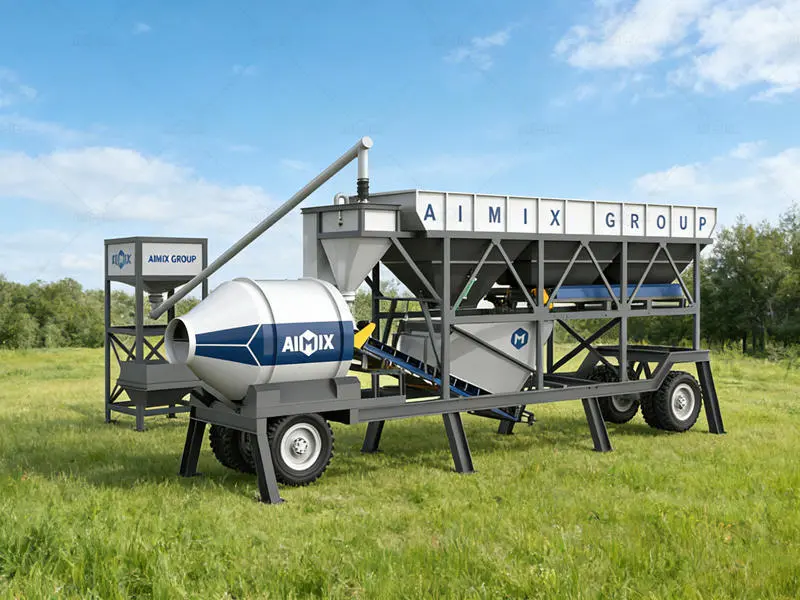

- AJZY drum mixer series (Self-falling mixing drum, suitable for highly fluid concrete like plastic and semi-dry concrete, capable of long-term mixing)
- Core features: Compact design for easy transportation, quick installation (7-45 days short set-up period), integrated concrete mixing plant equipment components (no complex batching plant foundation required), simplified integrated control systems for on-site adaptation; it’s a game-changer for cross-regional projects enable you to effortlessly reach customers in neighboring countries/regions, and contractors can take on more scattered projects, making it a powerful catalyst for business expansion beyond geographical limits
- Ideal uses: Temporary construction sites, rural infrastructure projects, road maintenance, projects with scattered locations or short construction cycles
Dry Mix Concrete Plants
Dry mix concrete plants are specialized for pre-mixed dry ingredients with on-site water addition. Its production capacity ranges from 25 m³/h to 180 m³/h. Key details:
- Main Models: AJG series (Fixed dry mix batch plants. They require a cement base; suitable for long-term projects with stable output)
AJYG series (portable dry mix concrete batch plants with high flexibility among sites) - Core features: High-precision batching plant machine for dry material proportioning, lower transportation water consumption and lower cost than wet mix types of batching plant, avoids wet mix segregation; its biggest competitive edge is breaking free from transportation distance restrictions—dry ingredients can be delivered over long distances conveniently, with water added on-site whenever needed
- Ideal uses: Precast component manufacturing, residential building construction, projects requiring long-distance transportation of dry ingredients before water mixing
Having explored the features and ideal uses of different concrete batching plant types, we will next showcase customized commercial batching plant cases from various countries. These real-world examples will help you better understand how tailored solutions adapt to diverse regional construction needs.
Various Types of Customized Concrete Plants Cases

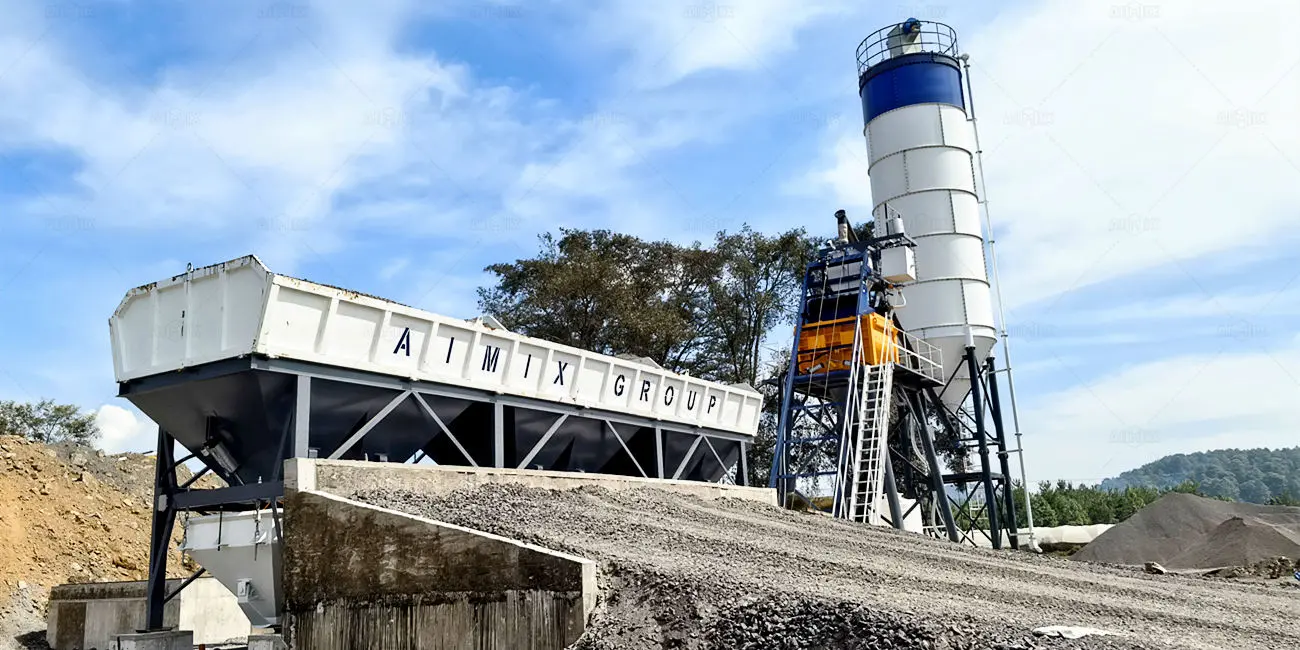

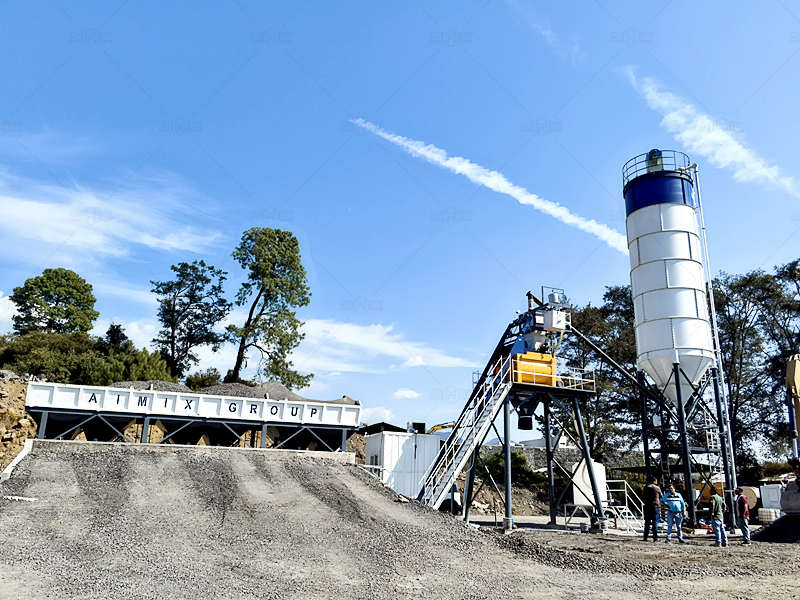

50 m³/h Stationary Batch Plant Helps Client Enter Ready-Mix Concrete Market
- Location: Mexico
- Customer needs: Switch to independent concrete production to cope with rising local concrete prices and seize precast market opportunities.
- Challenges: No equipment operation experience; tight deadline for quick production launch.

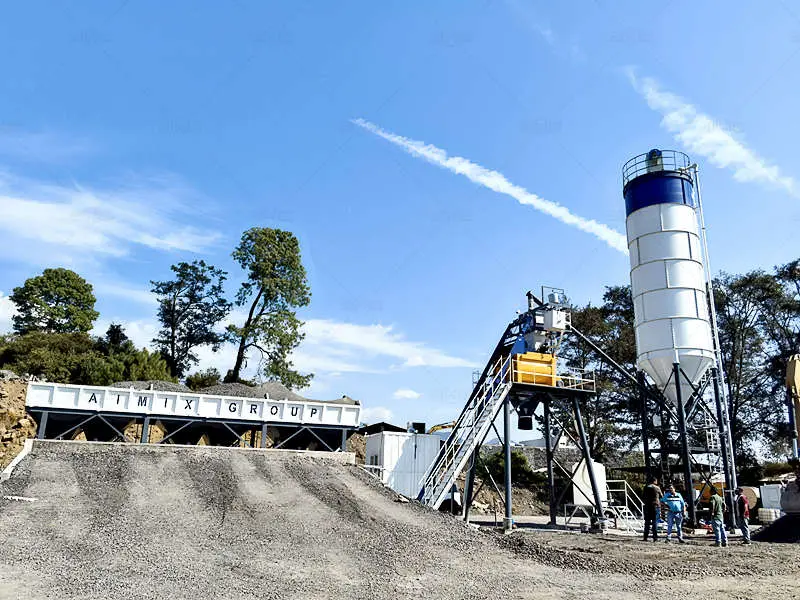

- Our solution: Customized AJ50 hopper-type stationary concrete batching plant machine+ on-site installation & operation training.
- Plant owner feedback: We’re really happy with the 50 m³/h central mixing plant—it runs smoothly, and the weighing is precise! Our team picked up how to operate it in just 3 days, so we hit production right on schedule. Making our own concrete saves us 30% compared to buying it.

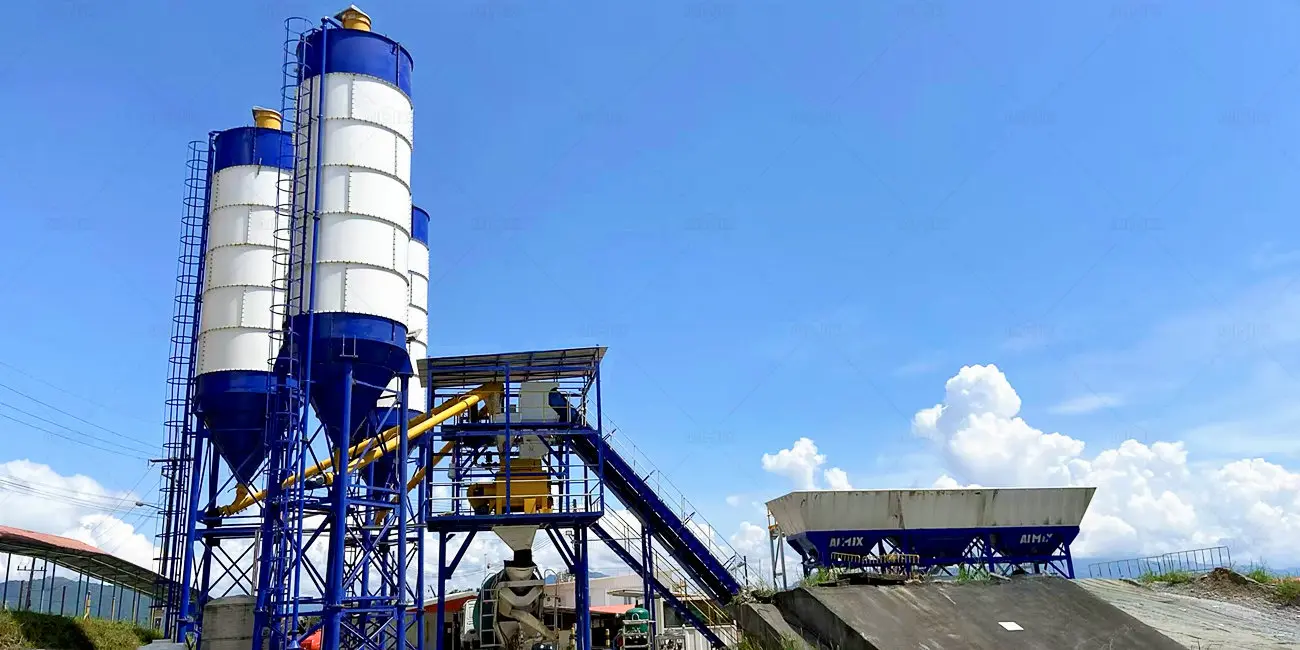

60 m³/h Concrete Plant Replaces Old One for a Mining Company
- Location: Laos
- Customer needs: Upgrade old equipment to meet mine expansion’s concrete demand, improve efficiency and reduce failures.
- Challenges: Old plant (20 m³/h) had frequent failures; harsh mining conditions require wear-resistant equipment.
- Our solution: 60 m³/h stationary plant with twin-shaft concrete plant mixer + IoT remote monitoring + predictive maintenance.
- Plant owner feedback: This upgraded plant’s output is increased, and breakdowns are much less—we haven’t had any unplanned downtime at all. It’s kept our mine expansion on track.

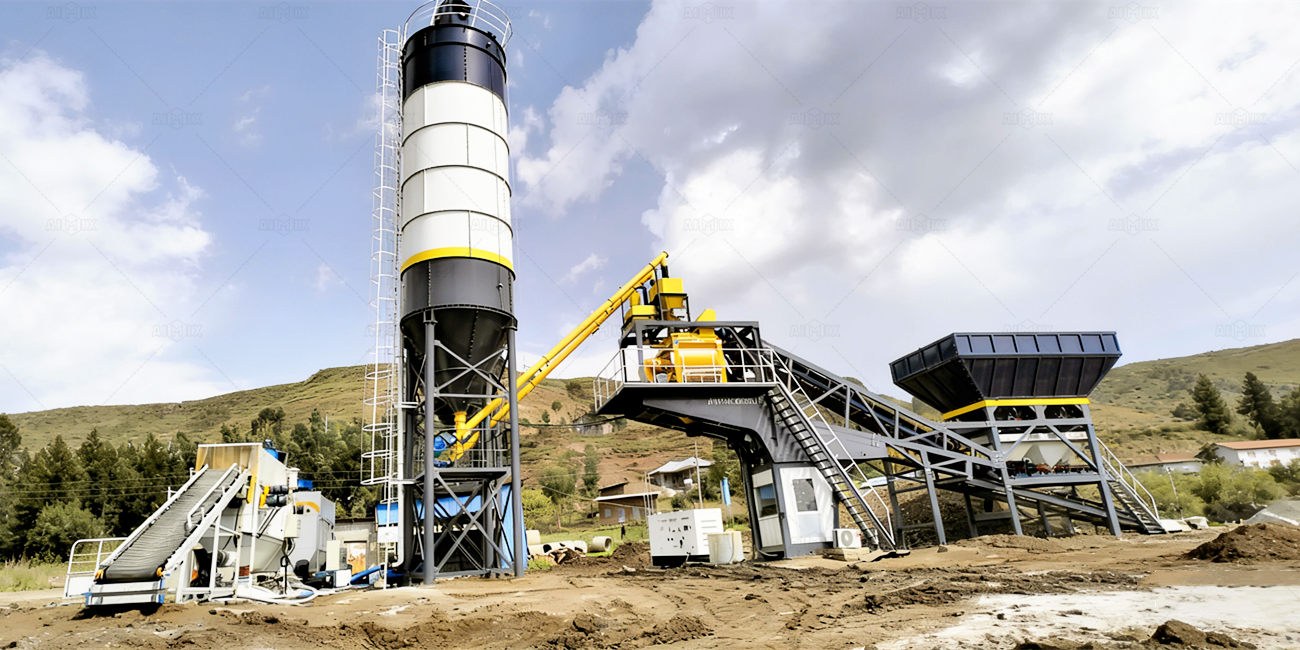

75 m³/h Plant Concrete Empowers Client’s First Government Project
- Location: Ethiopia
- Customer needs: Flexible concrete solution for remote solar energy project to ensure on-time supply.
- Challenges: Remote site with poor infrastructure; tight government-set construction period; lack of large project experience.
- Our solution: AJY35 mobile concrete batching plant (operational in 48h) + 24h on-site technical guidance.
- Plant owner feedback: This mobile plant got to our remote site easy and was up and running in 2 days flat. It ran non-stop without issues, so we supplied all the concrete on time. The government approved the project, and now we’re set to land more big government jobs!

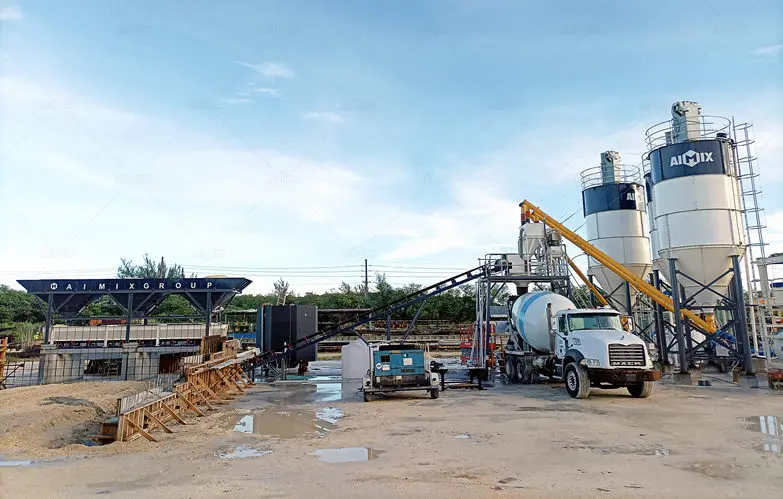

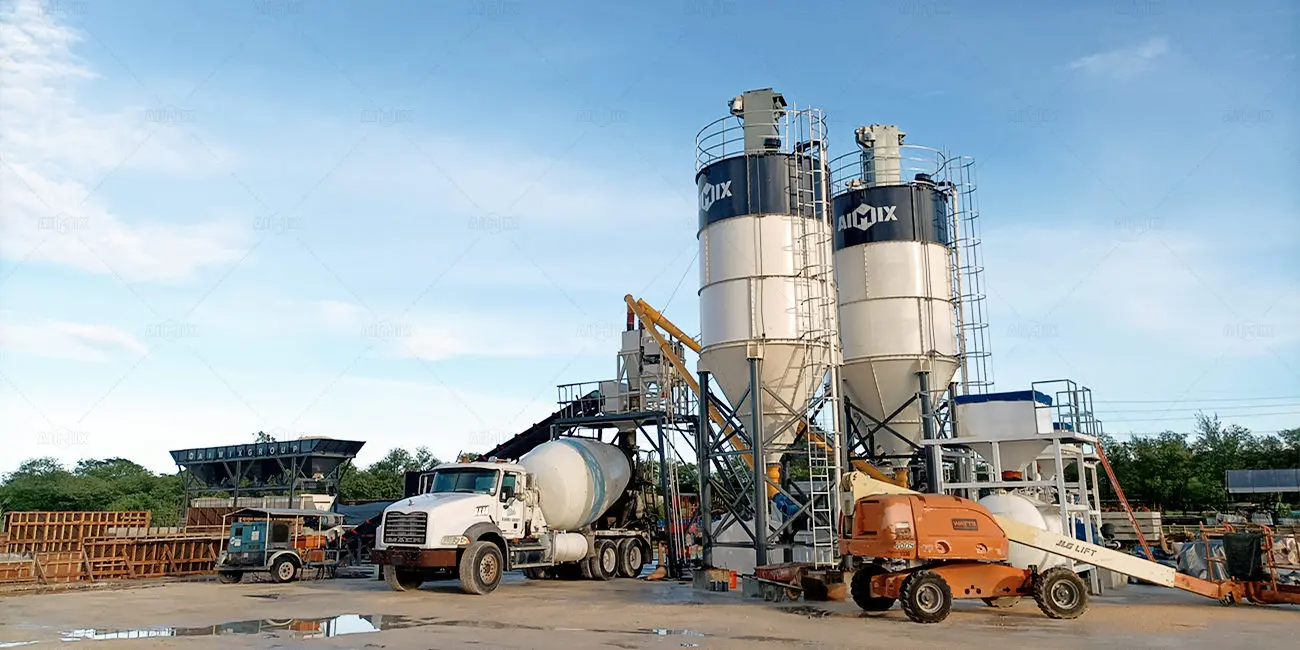

Dry Mix Concrete Plant Drives Growth for a Precast Company
- Location: Guam
- Customer needs: Expand to remote projects, solve concrete quality degradation during long-distance transportation.
- Challenges: Wet-mix concrete segregation; high precast component rejection rate; need to cut transportation costs.
- Our solution: AJG50 dry concrete mix plant (dry ingredients + on-site water addition) with high-precision batching system.
- Plant owner feedback: This dry concrete mixture plant solved our biggest headache—no more bad concrete from long hauls! We haul dry mix to remote sites and add water on the spot, cutting transport costs by 25%. Our precast parts are now 99% perfect, and we’re getting way more remote orders!

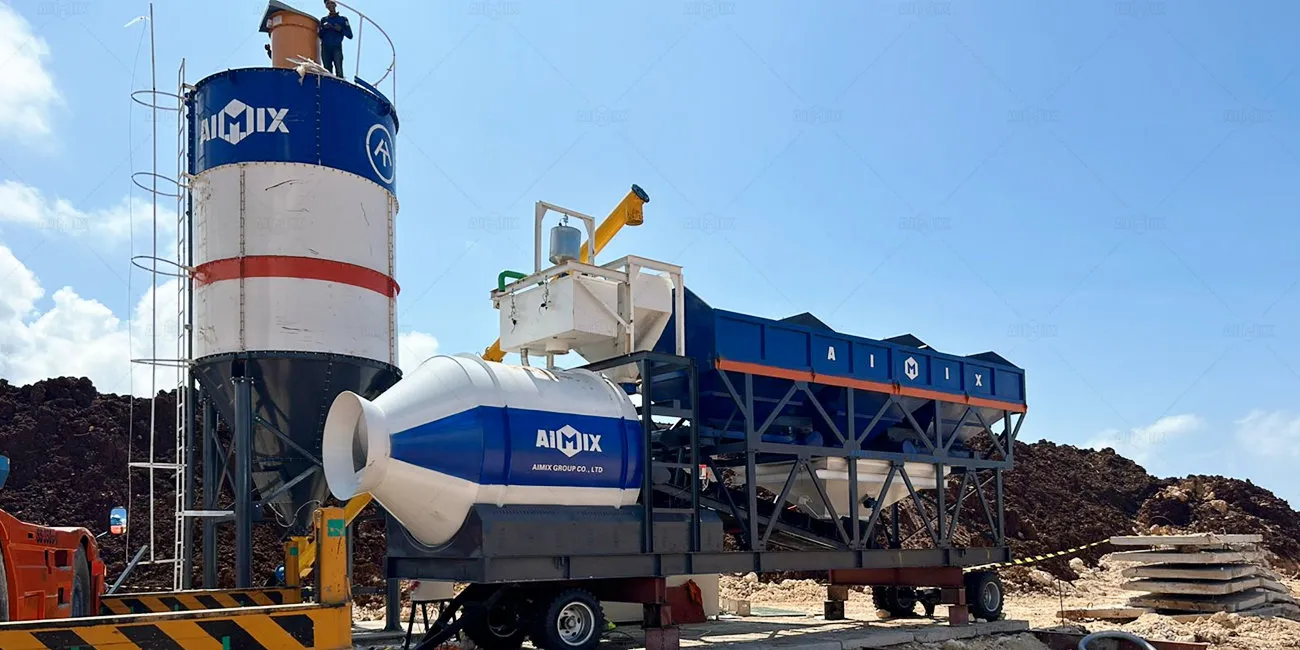

Drum Concrete Mixer Batching Plant Supports Warehouse Construction in Indonesia
- Location: Indonesia
- Customer needs: Integrated concrete solution for warehouse construction to reduce coordination costs and ensure progress.
- Challenges: Limited site space; no equipment coordination experience; tight construction period.
- Our solution: AJSY50 compact mobile plant + one-stop services (delivery, installation, technical support).
- Plant owner feedback: AIMIX’s one-stop solution save much time without comparing among different suppliers. The compact mobile plant fit our tight site perfectly. It ran steady, so we finished the warehouse 10 days early.

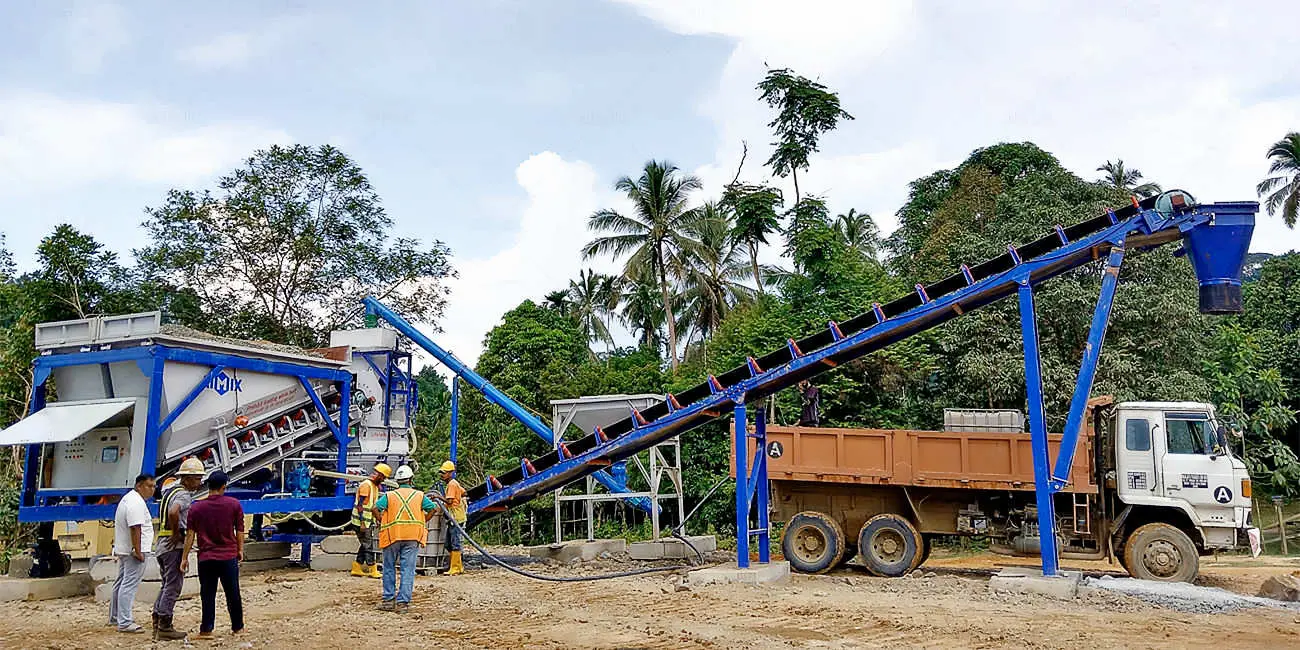

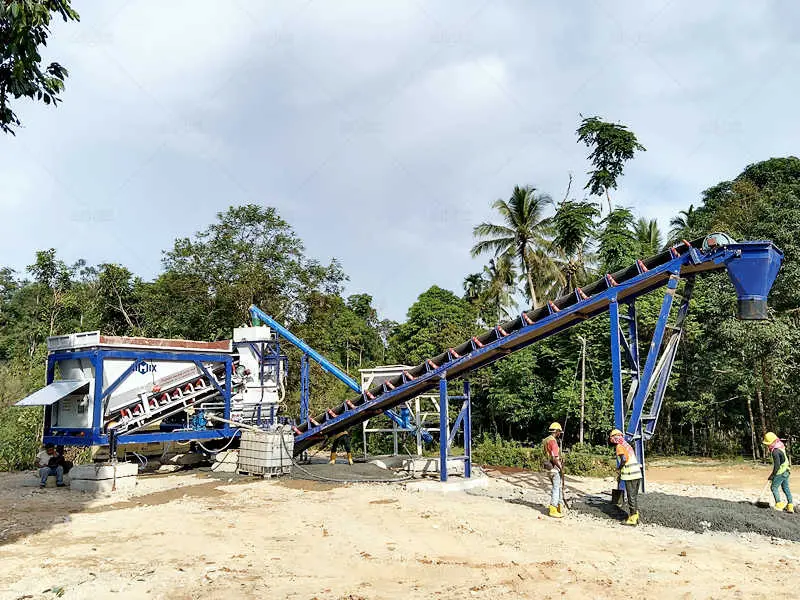

35m³/h Fast-Install Mobile Plant Ensures Stable Output
- Location: Malaysia
- Customer needs: Flexible plant for 2-month municipal road maintenance project, ensure stable concrete output.
- Challenges: Need ultra-fast installation; multi-section construction requires easy movement; strict quality standards.
- Our solution: AJSY35 mobile plant (installed in 24h) with dual operation mode (PLC + physical buttons).
- Plant owner feedback: This plant is amazing! We set it up in a day and started production the next. Moving it between road sections was easy, and the concrete quality was spot-on for the city’s standards. We’re using it for another project now.

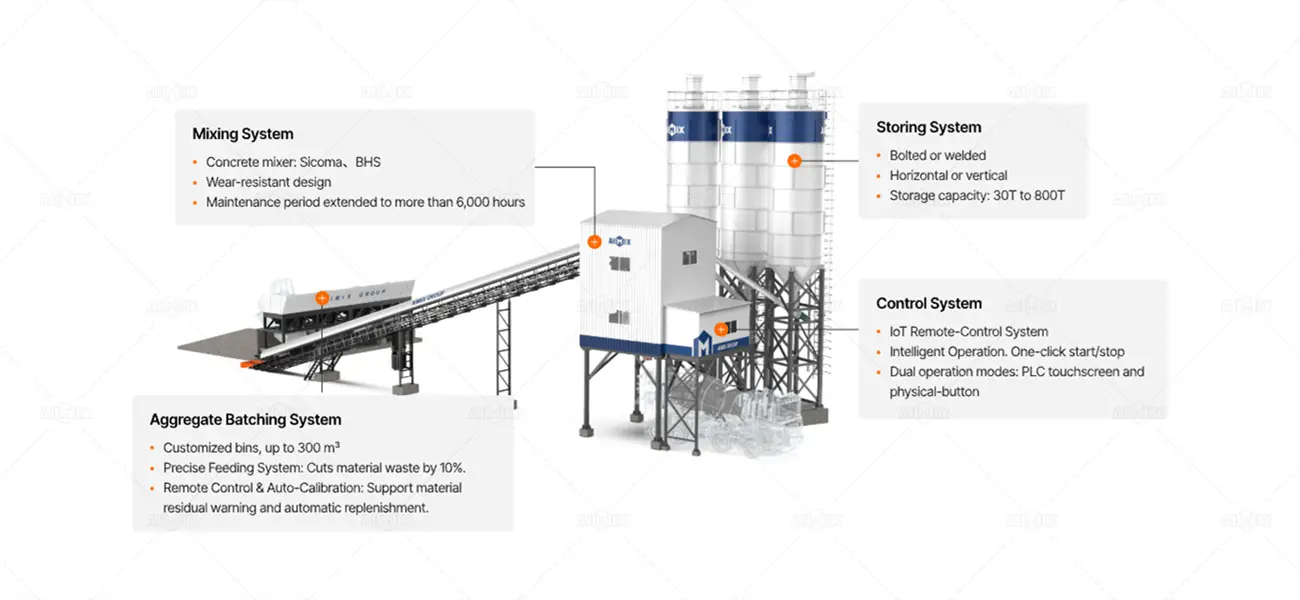

Essential Components of a High-Performance Concrete Batch Plant
A reliable fully automatic concrete batching plant relies on seven core components working in synergy. Each plays a key role in ensuring production efficiency, concrete quality and operational safety. Below is a concise breakdown of these components to help you grasp their core functions and value.
Mixing System: The “Heart” of Production
- Core Function: Blends cement, aggregates, water and additives into uniform, quality concrete.
- Key Types: Forced mixers (twin-shaft, planetary) are mainstream for high efficiency and versatility; gravity mixers suit low-demand fluid concrete. Core components include mixing drum, drive unit and blades.
- Value for You: Ensures consistent concrete quality (critical for structural safety of building using these concrete) and improves production efficiency.
Storing System: Stable Material Supply
- Core Function: Safely stores aggregates, cement, fly ash and other raw materials for continuous production.
- Key Components: Aggregate silos (3-5 compartments), powder silos (with level indicators and arch breakers). Capacity matches plant production scale.
- Value for You: Avoids production interruptions from material shortages; safety facilities reduce blockage/overflow risks.
Batching System: Precision Core for Material Distribution & Weighing
- Core Function: Distributes raw materials per production plan and accurately weighs them to preset mix ratios, ensuring consistent concrete quality.
- Key Features: Pneumatic/electric batching hoppers, discharge gates/valves; high-precision load cells (independent/cumulative weighing); ±0.1% single weighing accuracy (industry standard).
- Value for You: Reduces material waste, avoids ratio-related quality issues, improves production coordination and shortens cycles.
Control System: The Plant’s “Smart Brain”
- Core Function: Automates production processes, enables remote monitoring/control, and manages feeding precision to ensure continuous stable operation.
- Key Features: One-click start/stop + dual operation modes (PLC touchscreen/physical buttons); IoT real-time monitoring (motor temp/vibration/current) with auto-alerts; predictive maintenance; remote feed speed/ratio adjustment + material auto-replenishment.
- Value for You: Cuts startup time by 30%+, errors by 50%, failure rates by 40%; saves 25% maintenance costs, extends equipment life by 15%+, boosts production continuity by 20%.
Conveying System: Production Logistics Channel
- Core Function: Transports raw materials to batching/weighing/mixing systems and finished concrete to discharge port/mixer trucks.
- Key Types: Belt conveyors/bucket elevators for aggregates; sealed screw conveyors for powder; pipelines/pumps for water/additives.
- Value for You: Ensures smooth production flow; sealed powder conveying reduces environmental pollution.
Understanding the essential components of a concrete batching equipment lays the foundation for grasping how it operates. Many construction professionals seek clarity on the batching concrete plant process—below, we break down the full workflow in simple steps, making batching plant of concrete operation easy to understand.
How a Concrete Batching Plant Operates? Full Workflow Explained
The working of an automatic batching plant concrete is a systematic process that relies on the coordinated operation of all core components. From raw material preparation to finished concrete discharge, each link follows strict procedures to ensure efficiency and quality. Here’s the detailed workflow:
Pre-Operation Preparation & Material Inspection
Before starting batch plant operation, the first step is to inspect the entire system. This includes checking if the storing system has sufficient raw materials (aggregates, cement, fly ash), verifying that the weighing system is calibrated accurately, and ensuring the conveying system, mixing system, and control system are in normal working condition. This preparation avoids production interruptions and quality issues during operation.
Material Batching & Weighing
Guided by the batching plant operation procedure, the control system initiates the batching process. The batching system distributes different aggregates (sand, gravel) to the weighing hopper in sequence, and the weighing system accurately measures them according to the preset mix ratio—this is a key part of how a batching plant works. Powdery materials (cement, fly ash) are conveyed to their dedicated weighing hopper at the same time for precise measurement, followed by water and liquid additives, which are also weighed accurately to ensure the mix ratio is correct.
Material Conveying to Mixer
After weighing, all materials are conveyed to the mixing drum via the conveying system. Aggregates are usually transported by belt conveyors, while powdery materials are delivered through sealed screw conveyors to prevent dust leakage. This link ensures that all measured materials are efficiently transferred to the next stage, maintaining the continuity of the concrete batching and mixing plant process.
Mixing to Form Uniform Concrete
Once all materials enter the mixing drum, the mixing system starts working. Forced mixers (the mainstream type) use rotating blades to fully stir and blend the materials into uniform concrete. The mixing time is controlled by the control system according to the concrete type and quality requirements—this directly affects the uniformity and workability of the finished product, a core aspect of how does a concrete plant work.
Finished Concrete Discharge & Transportation
When the mixing is complete, the control system signals the mixer to discharge the finished concrete. The concrete is then conveyed to concrete mixer trucks or directly to the construction site (for on-site batching plants). After discharge, the mixing drum is cleaned appropriately to prevent concrete adhesion, ensuring the next batch of production is not affected.
Key Notes on Batching Plant Operation
The concrete batching plant working principle revolves around “precision, coordination, and quality control”. Operators should strictly follow the concrete batching plant operation manual to monitor the entire process in real time. Regular maintenance of the operating system and components also ensures stable batching plant operation and extends the concrete equipment’s service life.
Complementary Equipment for Your Concrete Batching Plant: Streamline the Full Production Cycle
A high-performance concrete batching plant only reaches its full potential when paired with the right supporting equipment. We offer tailored solutions to solve pain points across your production cycle, ensuring your batching plant operates efficiently from start to finish.

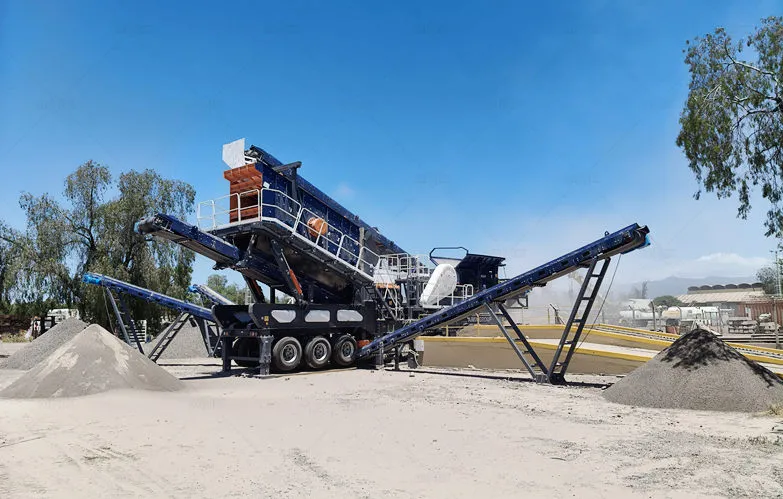

Raw Material Preprocessing, Upstream Efficiency: Crusher
- Core Role: Turns raw stone into uniformly sized aggregates (sand/gravel) that meet your concrete batching plant’s mix ratio requirements.
- Ideal Scenarios: Paired with stationary concrete batching plants for mining/large infrastructure projects; suitable for clients aiming to source raw stone directly (cutting external supplier reliance).
- Value: Reduces aggregate procurement costs by up to 20%; shortens material lead times; creates a self-sufficient raw material loop for your batching plant.

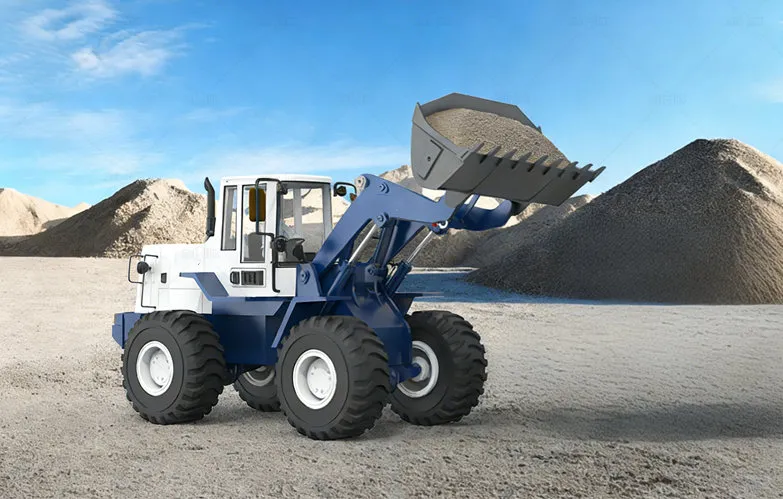

On-Site Material Handling,Essential for Continuous Production: Loader
- Core Role: Quickly and consistently moves raw materials to your batching plant’s hoppers, matching the plant’s feeding speed.
- Ideal Scenarios: All concrete batching plant types (compact mobile plants for small sites, high-capacity stationary plants for commercial production).
- Value: Cuts material transfer time by 30%; eliminates feed interruptions that slow batching plant output; reduces manual labor dependency.

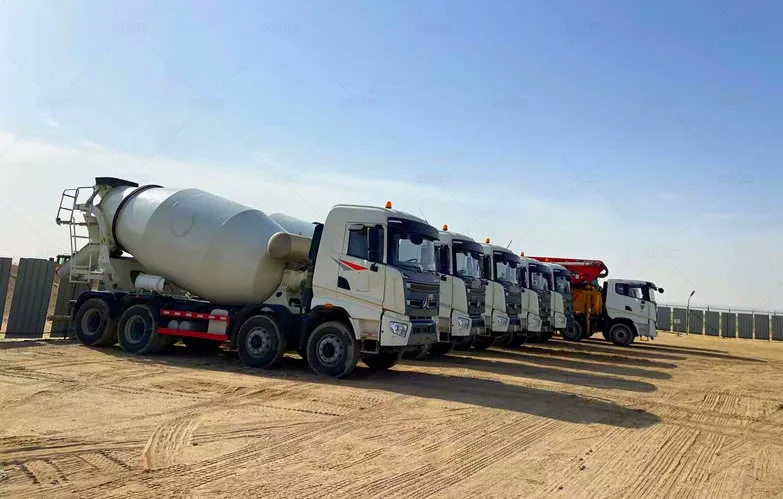

Finished Concrete Delivery，Seamless On-Site Distribution：Concrete Mixer Truck
- Core Role: Maintains concrete homogeneity during transport, ensuring the output from your batching plant reaches job sites in optimal condition.
- Ideal Scenarios: Paired with dry mix concrete plants (long-distance transport) or mobile batching plants (multi-section municipal/road projects).
- Value: Avoids concrete quality loss during delivery; syncs with batching plant output rate to prevent waste; ensures fresh concrete delivery for on-time construction.
We specialize in producing a full range of construction machinery, including the above-mentioned complementary equipment for concrete mixing plants. Our team can tailor matching equipment combinations according to your batching plant of concrete type, production capacity, and construction scenarios, ensuring seamless collaboration between all equipment and maximizing your project benefits. If you want to know more about the specifications, prices, or matching plans of these equipment, please feel free to inquire with us—we will provide you with professional answers and preferential quotes in a timely manner.
Cooperate With Us: One-Stop Concrete Batching Plant Solutions
Choosing the right batching plant concrete and complementary equipment is just the first step. AIMIX, as a leading construction machinery supplier, offers tailored one-stop solutions—from pre-sales to after-sales—to safeguard your investment and boost operational efficiency.
AIMIX: Your Trusted Partner for Concrete Batching Plant Projects
Focused on concrete batch plant equipment R&D, production and after-sales, AIMIX understands your project pain points. We’ve built a full-cycle service system to help your business thrive.
Pre-Sales Service: Customized Solutions for You
Our senior consultants provide one-on-one service, contacting you within 2 hours to clarify your needs. Technical managers design 2-3 customized plans (with 3D drawings, parameters, etc.) and fine-tune configurations for your concrete station batching plant.
In-Sales Service: Transparent & Reliable Production
We keep real-time communication for configuration adjustments. Our supervision team oversees the entire production process, ensuring every component of your concrete batching plant meets industry standards.

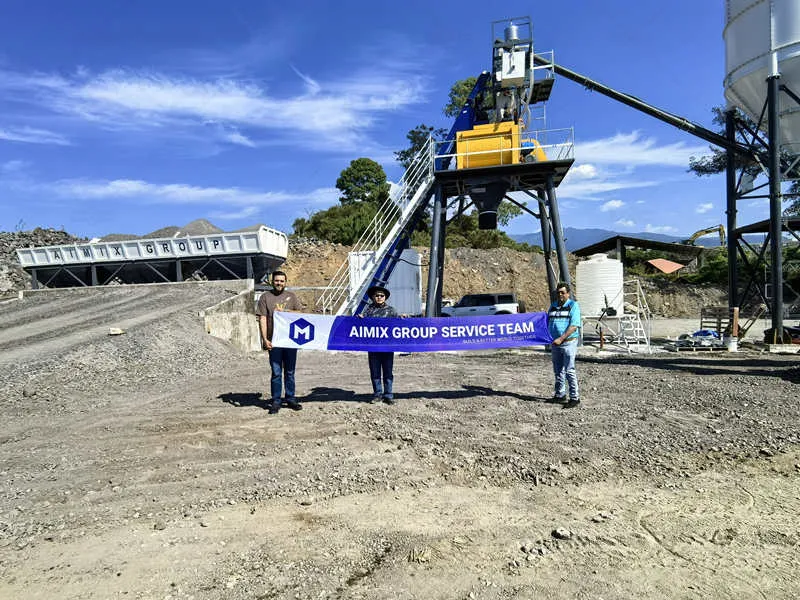

After-Sales Service: Worry-Free Global Support
With service teams in 10+ countries (Indonesia, Malaysia, etc.) and local warehouses (e.g., Surabaya), we offer full after-sales support:

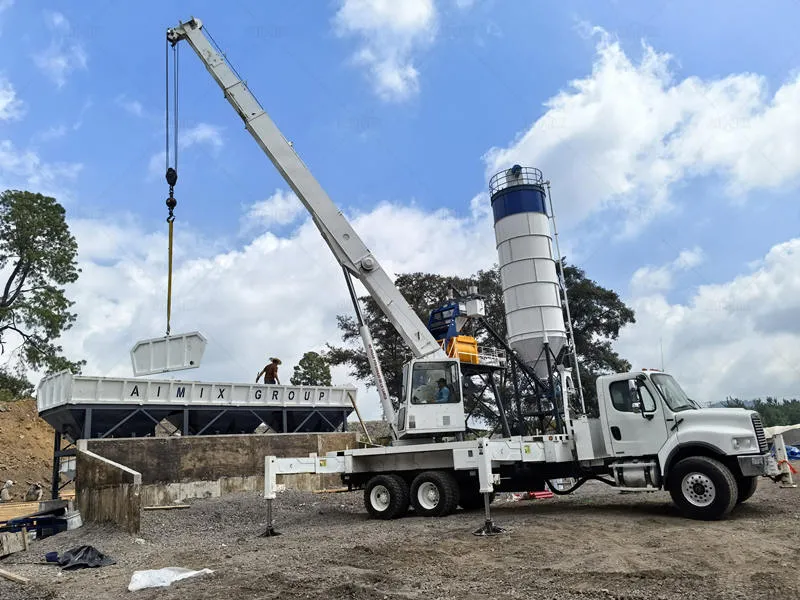

- Installation & Training: Professional teams install, commission and train your operators, plus free long-term technical consultation.

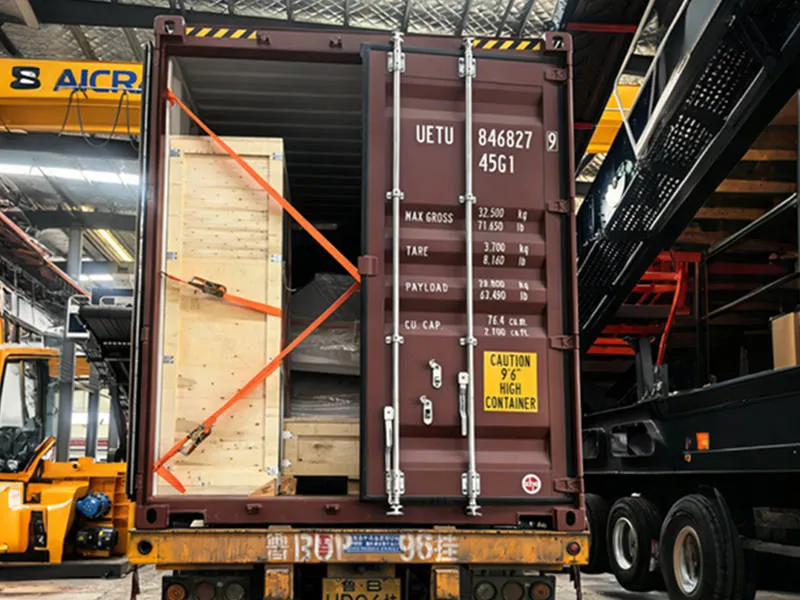

- Effortless Logistics: Economical transportation, secure packaging, and partnered customs clearance for hassle-free import.
- Turnkey Service: One-stop service from customization to operation, saving your time on non-core work.
Join Hands With AIMIX
AIMIX has exported to 100+ countries. Contact us now for professional, tailored services for your concrete batching plant project!
Concrete batching plants are the core of modern construction, and choosing the right type, understanding concrete batching plant components, workflow and complementary equipment is key to project success. AIMIX integrates high-quality China production plants, matching equipment and full-cycle services to provide you with worry-free solutions. Whether you need a standard model or a customized plan, we stand by your side to turn your project goals into reality.
